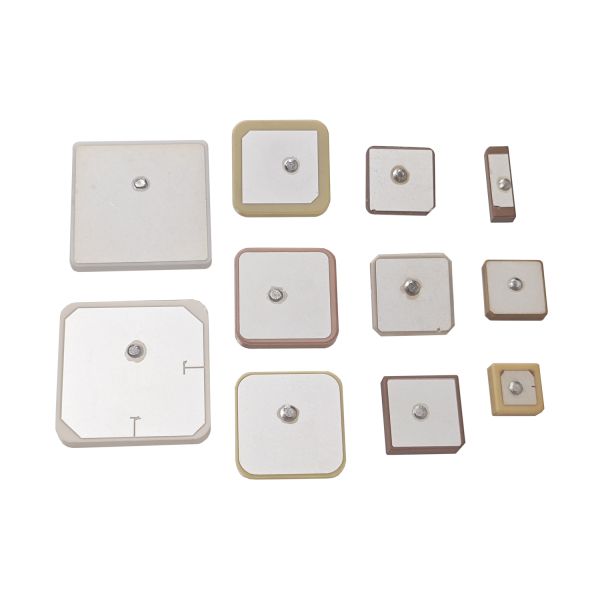

Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

Name: Small Mini GPSGNSS Active Ceramic Embedded Antenna UFL Connector 15601610MHz Frequency Range 28dBi
Brand: RIDA Antennaer
Price: 1 USD

Wholesale Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi from china suppliers

Name : GNSS Internal Antenna

VSWR : <1.5

Polarity : vertical

Model Number : RIDACG-X-IE

Noise : ≤1.5

Packaging Details : opp bag single pcs

Connectivity : as requirement

Place of Origin : Guangdong, China

Delivery Time : 10-15days

Certification : ISO9001/IATF16949

LNA Gain (Active Gain) * : 28dBi

Cable Length * : RF1.13 150mm

Material : ceramic

Gain (Passive Gain) * : ≥3dBi

Mounting Method * : None/Adhesive

Frequency Range * : 1560-1610MHz (Customizable)

Operation temperature : - 40 ℃ ~ +85℃

Brand Name : RIDA Antennaer

Type : GPS/GNSS Antenna

MOQ : 500

Supply Ability : 400000pcs per month

Contact Now

Products Description

Small Mini GPS/GNSS Active Ceramic Embedded Antenna U.FL Connector 1560-1610MHz Frequency Range 28dBi

We are a comprehensive antenna company specializing in both design and production, offering tailored solutions for internal ceramic antennas with various sizes and performance capabilities.

Please feel free to contact us at any time to obtain the most suitable antenna for your needs :)

2064/2

Frequency: 1561-1610MHz
Gain: 20±2dBi
V.S.W.R: ≤1.5
Noise: ≤ 2
Operation Voltage: 3.3±10% VDC

25254/2

Frequency: 1560-1610MHz

Gain: 28±2dBi
V.S.W.R: ≤1.5
Noise: ≤ 1.5
Out-of-band Rejection: fo±100MHz >25dB

45452

Frequency: 1560-1602MHz
Gain: 20dBi
V.S.W.R: ≤1.5
Noise: ≤ 1.5
Polarization mode: RHCP

Product Parameters & Customizable Range

Customizable options are marked with an asterisk ( * )

Frequency range(MHz) *	1575.42MHz,1561MHz,1602MHz/ GNSS Dual-Band / GNSS Tri-Band
Impedance	50Ω
V.S.W.R	≤1.5
LNA Gain *	28 dBi ( 20dbi or 38dbi )
Polarization type	RHCP
Power Capacity	50W
Connector *	as per your requirement
AxialRatio@fc	Subject to product
ReturnLoss[dB]@fc	-15dBmin (Subject to product)
Cable length *	150mm
Material Science	Tinplate
Working Temp(°C)	-40°C~+85°C
